box-stacks algorithms

See boxstacks for the input/output format and CLI usage of this solver.

Sequential one-dimensional / rectangle

This algorithm solves the feasibility, knapsack and open-dimension-x objectives with a single bin.

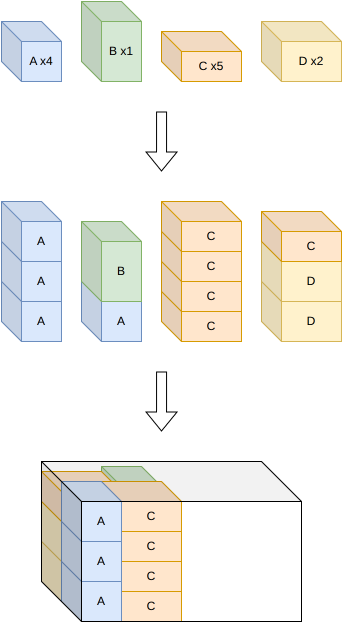

It decomposes the problem in two phases:

1. Group items into stacks by solving a one-dimensional variable-sized bin packing problem (each stack is a “bin” whose length is limited by the stacking constraints).

2. Pack the resulting stacks into the bin’s footprint by solving a rectangle knapsack problem.

The stacks generated in the first step contain exactly all the items.

This decomposition is much cheaper than the full tree search below, and is designed for instances where axle/weight constraints don’t force a sparse packing.

See the detailed description.

Tree search

This algorithm solves the feasibility and knapsack objectives with a single bin.

It is a tree search algorithm where a single item is packed at each stage. The root node is an empty partial solution (no item packed). Given a node, a child node is generated for each feasible insertion of each unpacked item.

The possible insertions for an unpacked item are the ones where the new item has its lower y touching either another packed stack or the y = 0 side of the bin; or where the new item is stacked over a packed stack.

This algorithm is more expensive than the sequential one-dimensional / rectangle algorithm. It is useful when axle-weight constraints are active in the best solutions.

See the detailed description.

Box bounds

The instance is relaxed to a box instance, dropping the stacking, axle weight, stack density and unloading constraints (the items with a nesting height keep their reduced height). Every solution of the original instance is a solution of the relaxation, so the bounds computed by the box algorithms on it are valid bounds. They are computed by default, and can be disabled with --use-box-bounds 0 (CLI) or use_box_bounds (Python).
