`box` solver¶

The box solver solves three-dimensional bin packing problems where items are rectangular parallelepipeds (boxes) that must be packed into rectangular bins without overlapping. Unlike the box-stacks solver, items are placed freely in 3D space — they are not restricted to vertical stacks and do not need to share a footprint.

These problems occur for example in container loading, truck loading, and warehouse picking.

Features:

Objectives:
- Knapsack
- Bin packing
- Bin packing with leftovers
- Open dimension X
- Open dimension Y
- Open dimension Z
- Variable-sized bin packing
Select allowed item rotations (among the 6 possible rotations)
Maximum weight in bins

Basic usage¶

An instance is described in the JSON format below. The online solver downloads its instances in this format (Download) and loads them (Load a JSON file), the command-line solver reads them (--input), and the Python package and the C++ library read them with InstanceBuilder.read. Instances can also be built directly with the InstanceBuilder of the Python package and of the C++ library.

In the following example, the items of three item types are packed in a bin of size 216 × 173 × 110, maximizing the volume of the items packed:

Online solver

Open the example in the online solver: Basic example, then click Solve.

JSON

Basic example¶

{
    "objective": "knapsack",
    "bin_types": [
        {"x": 216, "y": 173, "z": 110}
    ],
    "item_types": [
        {"x": 108, "y": 76, "z": 30, "copies": 20},
        {"x": 110, "y": 43, "z": 25, "copies": 20},
        {"x": 92, "y": 81, "z": 55, "copies": 20}
    ]
}

Solve it with the command-line solver:

packingsolver_box \
        --input instance.json \
        --certificate solution.csv \
        --time-limit 5

Python

Basic example¶

import packingsolver.box as psb

instance_builder = psb.InstanceBuilder()
instance_builder.set_objective(psb.Objective.Knapsack)
instance_builder.add_bin_type(216, 173, 110)
instance_builder.add_item_type(108, 76, 30, copies=20)
instance_builder.add_item_type(110, 43, 25, copies=20)
instance_builder.add_item_type(92, 81, 55, copies=20)
instance = instance_builder.build()

Solve it:

parameters = psb.OptimizeParameters()
parameters.time_limit = 5
output = psb.optimize(instance, parameters)
output.solution.write("solution.csv")

C++

Basic example¶

#include "packingsolver/box/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::box;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::Knapsack);
instance_builder.add_bin_type(216, 173, 110);
ItemTypeId item_type_id = instance_builder.add_item_type(108, 76, 30);
instance_builder.set_item_type_copies(item_type_id, 20);
item_type_id = instance_builder.add_item_type(110, 43, 25);
instance_builder.set_item_type_copies(item_type_id, 20);
item_type_id = instance_builder.add_item_type(92, 81, 55);
instance_builder.set_item_type_copies(item_type_id, 20);
Instance instance = instance_builder.build();

Solve it:

#include "packingsolver/box/optimize.hpp"

OptimizeParameters parameters;
parameters.timer.set_time_limit(5);
box::Output output = optimize(instance, parameters);
output.solution_pool.best().write("solution.csv");

Link the target PackingSolver::box of the CMake project.

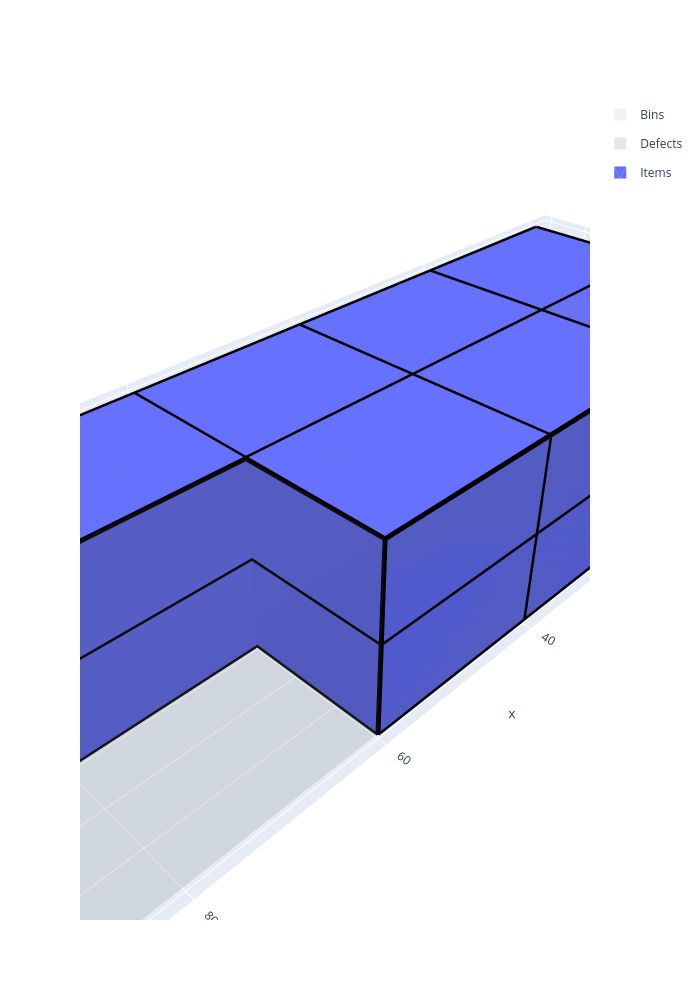

The solution:

Instance format¶

An instance is a JSON object with the following fields:

Field	Description
`objective`	Mandatory. One of `knapsack`, `bin-packing`, `bin-packing-with-leftovers`, `open-dimension-x`, `open-dimension-y`, `open-dimension-z`, `variable-sized-bin-packing`; see Objectives
`leftover_mode`	How the leftover of the last bin is measured, for the `bin-packing-with-leftovers` objective: the volume of the bin minus the volume used, which is the box from the origin of the bin to the items along the dimensions of the mode, and the whole bin along the other dimensions. One of `XYZ` (default; the bounding box of the items), `XY`, `XZ`, `YZ`, `X` (the length of the bin used along X, times the Y and Z dimensions of the bin), `Y`, `Z`
`bin_types`	Mandatory. The bin types (array)
`item_types`	Mandatory. The item types (array)

A bin type has the following fields:

Field	Description
`x`, `y`, `z`	Mandatory. The dimensions of the bins (integers); `z` is the height
`copies`	The number of copies of the bin type. Default: `1`; `-1` for an unlimited number of copies
`copies_min`	The minimum number of copies of the bin type to use, for the variable-sized bin packing objective. Default: `0`
`cost`	The cost of a bin of this type, for the variable-sized bin packing objective. Default: the volume of the bin
`maximum_weight`	See Maximum total weight in a bin. Default: no limit

An item type has the following fields:

Field	Description
`x`, `y`, `z`	Mandatory. The dimensions of the items (integers)
`copies`	The number of copies of the item type. Default: `1`; `-1` for an unlimited number of copies (knapsack objective only)
`copies_min`	The minimum number of copies of the item type to pack, for the knapsack objective. Default: `0`
`profit`	The profit of an item of this type, for the knapsack objective. Default: the volume of the item
`rotations`	See Item rotations. Default: `["XYZ"]`
`weight`	See Maximum total weight in a bin. Default: `0`

In Python, the optional fields of the bin types and of the item types are keyword arguments of InstanceBuilder.add_bin_type and InstanceBuilder.add_item_type, with the same names. In C++, they are set with the InstanceBuilder.set_bin_type_<field> and InstanceBuilder.set_item_type_<field> methods; the examples below show the exceptions.

Certificate format¶

The solution is written (command-line option --certificate, Solution.write) as a CSV file with the columns TYPE, ID, COPIES, BIN, X, Y, Z, LX, LY, LZ, ROTATION. Each line is:

a bin (TYPE BIN): ID is its bin type, COPIES the number of identical bins it stands for, BIN its index in the solution, and LX, LY, LZ its dimensions;
an item (TYPE ITEM): ID is its item type, BIN the index of its bin, X, Y, Z the position of its corner of smallest coordinates, LX, LY, LZ its dimensions once placed, and ROTATION its rotation.

solution.csv¶

TYPE,ID,COPIES,BIN,X,Y,Z,LX,LY,LZ,ROTATION
BIN,0,1,0,0,0,0,216,173,110,
ITEM,0,1,0,0,0,0,108,76,30,XYZ
ITEM,2,1,0,0,0,30,92,81,55,XYZ
ITEM,1,1,0,0,0,85,110,43,25,XYZ
ITEM,0,1,0,108,0,0,108,76,30,XYZ
ITEM,1,1,0,92,0,30,110,43,25,XYZ
ITEM,2,1,0,110,0,55,92,81,55,XYZ

To visualize a solution, open it in the solution viewer, or run:

python3 scripts/visualize.py solution.csv

Item rotations¶

By default, the items keep their original orientation. The allowed rotations of an item type are given among the six possible rotations of a box:

Rotation	X direction	Y direction	Z direction (vertical)
`XYZ`	x	y	z
`YXZ`	y	x	z
`ZYX`	z	y	x
`YZX`	y	z	x
`XZY`	x	z	y
`ZXY`	z	x	y

Common combinations:

XYZ: only the original orientation (default)
XYZ and YXZ: the Z face always on top
XYZ, YXZ, ZYX and YZX: the Y face never on top
XYZ, YXZ, XZY and ZXY: the X face never on top
all six rotations

Online solver

In the Item types table, check the allowed rotations of each item type.

JSON

In an item type: "rotations": ["XYZ", "XZY"].

Python

instance_builder.add_item_type(x, y, z, rotations=[psb.Rotation.XYZ, psb.Rotation.XZY])

C++

instance_builder.add_item_type_rotation(item_type_id, Rotation::XZY);, once for each allowed rotation.

In the following example, a 10 × 10 × 6 item and a 10 × 4 × 6 item are packed in bins of size 10 × 10 × 10 (bin-packing objective). The first item fills the bottom of a bin, leaving a 10 × 10 × 4 gap on top. When the items keep their orientation, the second item is 6 high and doesn’t fit in that gap, so a second bin is needed. When the rotation XZY is allowed for the second item, it is turned on its side (10 × 6 × 4) and fits in the gap: both items are packed in a single bin.

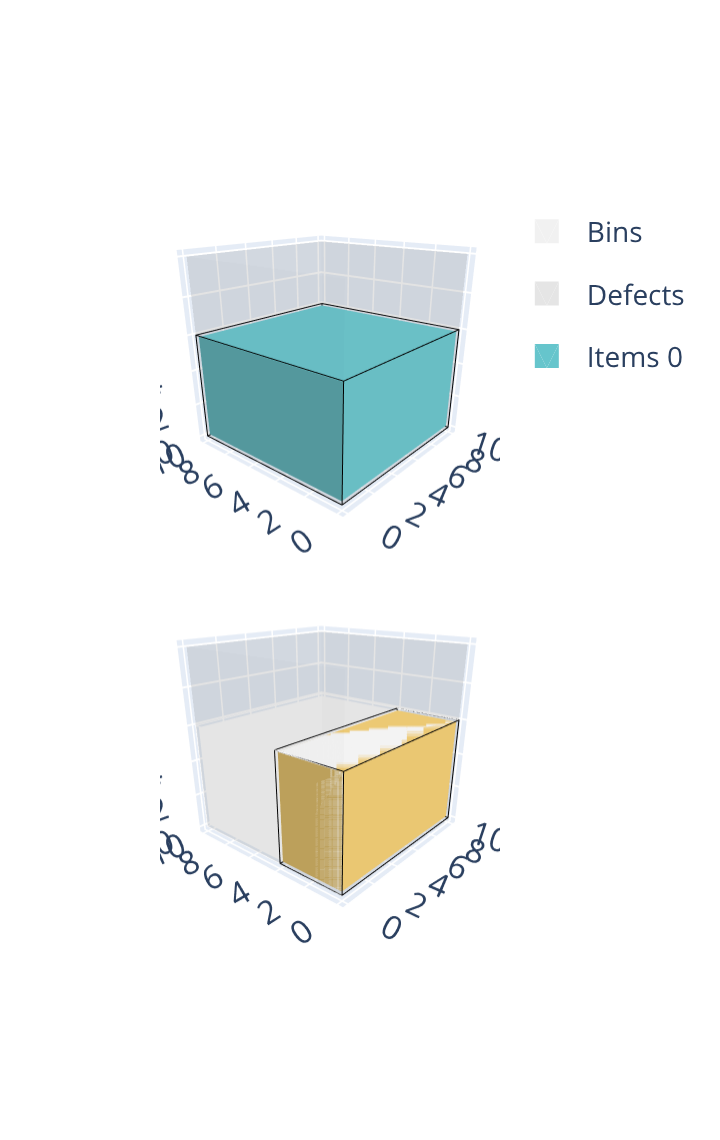

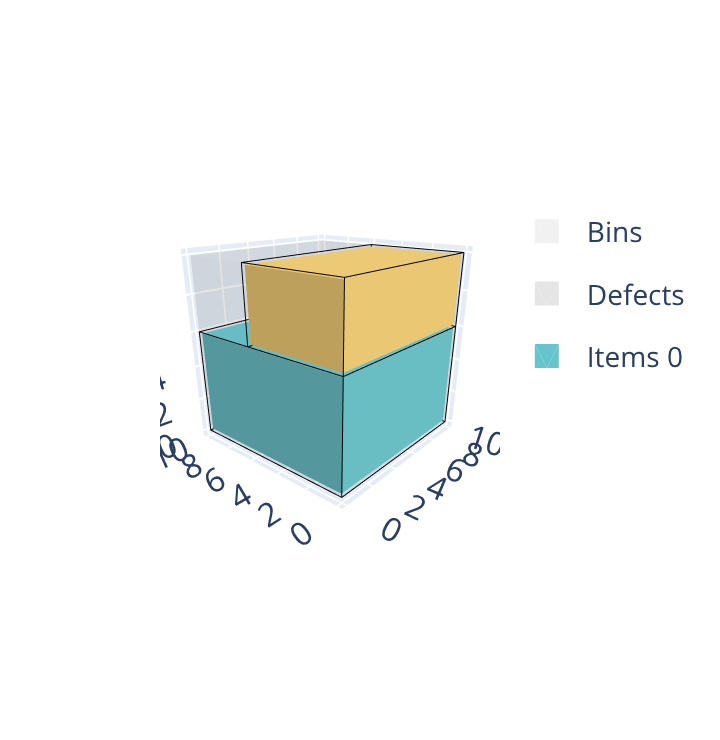

Oriented items	Items which can be rotated

Online solver

Open the examples in the online solver: Item rotations: oriented items, Item rotations: items which can be rotated.

JSON

Item rotations: oriented items¶

{
    "objective": "bin-packing",
    "bin_types": [
        {"x": 10, "y": 10, "z": 10, "copies": 2}
    ],
    "item_types": [
        {"x": 10, "y": 10, "z": 6},
        {"x": 10, "y": 4, "z": 6}
    ]
}

Item rotations: items which can be rotated¶

{
    "objective": "bin-packing",
    "bin_types": [
        {"x": 10, "y": 10, "z": 10, "copies": 2}
    ],
    "item_types": [
        {"x": 10, "y": 10, "z": 6, "rotations": ["XYZ"]},
        {"x": 10, "y": 4, "z": 6, "rotations": ["XYZ", "XZY"]}
    ]
}

Python

Item rotations: oriented items¶

import packingsolver.box as psb

instance_builder = psb.InstanceBuilder()
instance_builder.set_objective(psb.Objective.BinPacking)
instance_builder.add_bin_type(10, 10, 10, copies=2)
instance_builder.add_item_type(10, 10, 6)
instance_builder.add_item_type(10, 4, 6)
instance = instance_builder.build()

Item rotations: items which can be rotated¶

import packingsolver.box as psb

instance_builder = psb.InstanceBuilder()
instance_builder.set_objective(psb.Objective.BinPacking)
instance_builder.add_bin_type(10, 10, 10, copies=2)
instance_builder.add_item_type(10, 10, 6, rotations=[psb.Rotation.XYZ])
instance_builder.add_item_type(
        10,
        4,
        6,
        rotations=[psb.Rotation.XYZ, psb.Rotation.XZY],
)
instance = instance_builder.build()

C++

Item rotations: oriented items¶

#include "packingsolver/box/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::box;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(10, 10, 10);
instance_builder.set_bin_type_copies(bin_type_id, 2);
instance_builder.add_item_type(10, 10, 6);
instance_builder.add_item_type(10, 4, 6);
Instance instance = instance_builder.build();

Item rotations: items which can be rotated¶

#include "packingsolver/box/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::box;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(10, 10, 10);
instance_builder.set_bin_type_copies(bin_type_id, 2);
ItemTypeId item_type_id = instance_builder.add_item_type(10, 10, 6);
instance_builder.add_item_type_rotation(item_type_id, Rotation::XYZ);
item_type_id = instance_builder.add_item_type(10, 4, 6);
instance_builder.add_item_type_rotation(item_type_id, Rotation::XYZ);
instance_builder.add_item_type_rotation(item_type_id, Rotation::XZY);
Instance instance = instance_builder.build();

Maximum total weight in a bin¶

Each bin type may have a maximum weight: the total weight of the items packed in a bin must not exceed it.

Online solver

Fill the Weight column of the Item types table, and the Maximum weight column of the Bin types table.

JSON

In an item type: "weight": 100; in a bin type: "maximum_weight": 200.

Python

instance_builder.add_item_type(x, y, z, weight=100) and instance_builder.add_bin_type(x, y, z, maximum_weight=200)

C++

instance_builder.set_item_type_weight(item_type_id, 100); and instance_builder.set_bin_type_maximum_weight(bin_type_id, 200);

In the following example, 4 items of size 10 × 10 × 10 and of weight 100 are packed in bins of size 20 × 20 × 10. Without a maximum weight, the 4 items (total weight 400) fit in a single bin, as a 2 × 2 grid. With a maximum weight of 200, at most 2 items can share a bin, so 2 bins are needed.

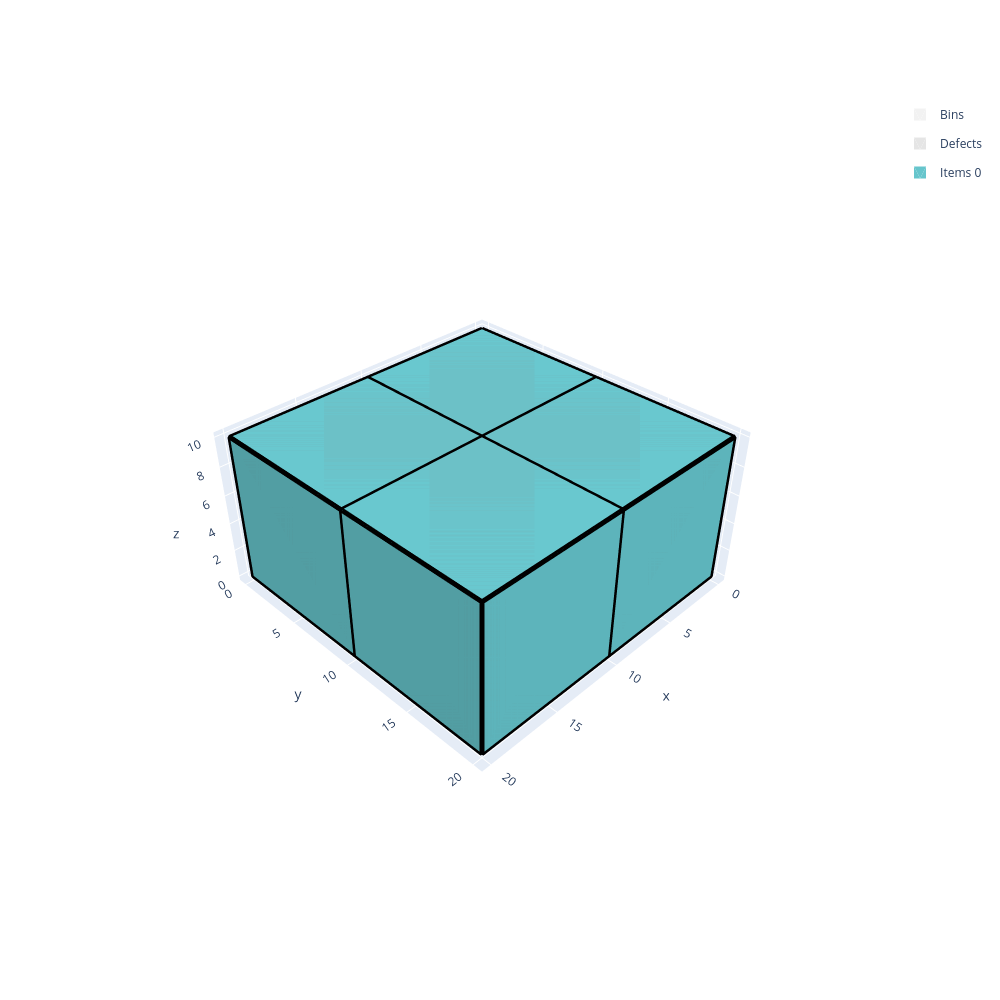

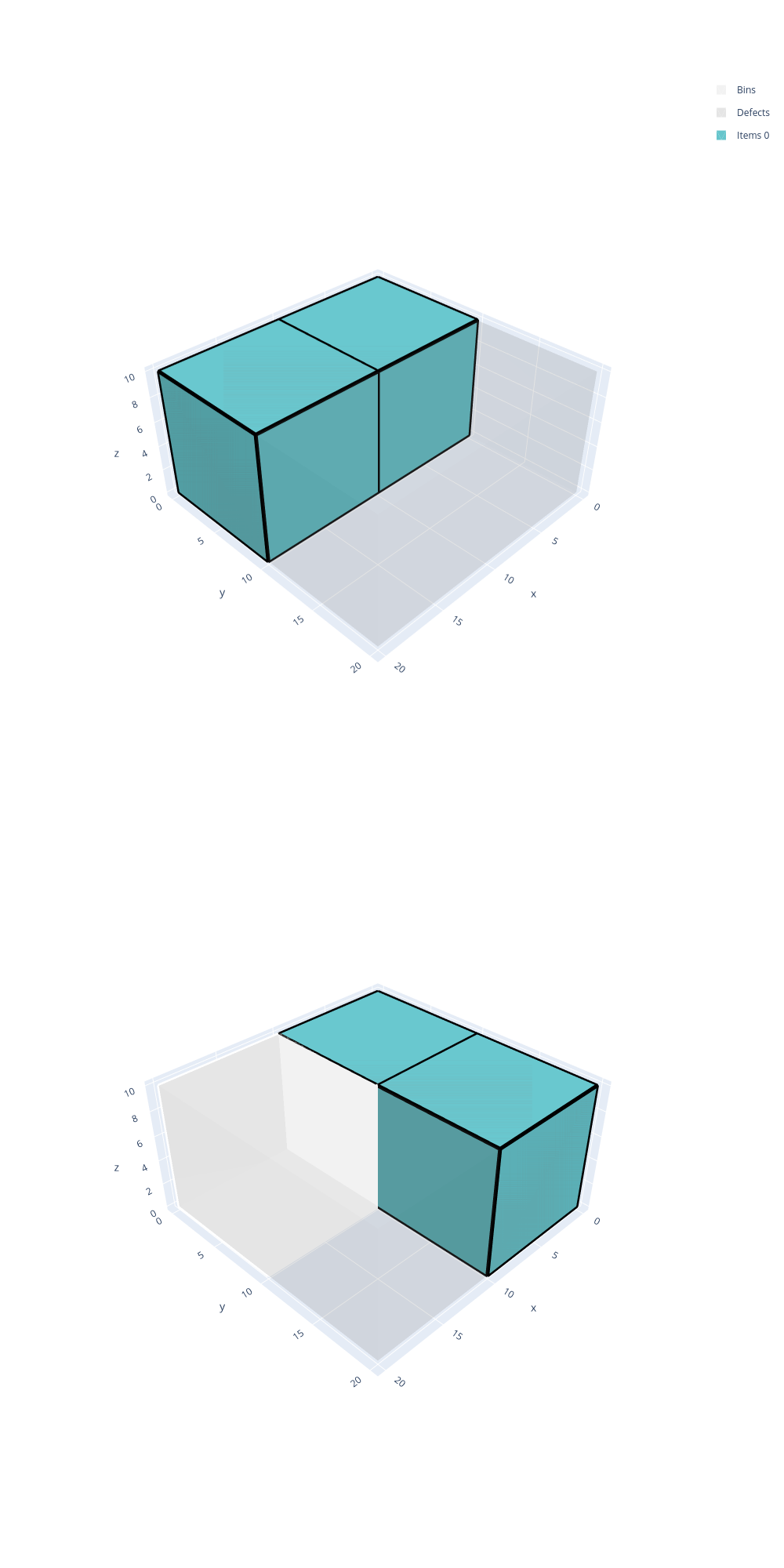

Without maximum weight	With maximum weight

Online solver

Open the examples in the online solver: Maximum weight: without maximum weight, Maximum weight: with maximum weight.

JSON

Maximum weight: without maximum weight¶

{
    "objective": "bin-packing",
    "bin_types": [
        {"x": 20, "y": 20, "z": 10, "copies": 10}
    ],
    "item_types": [
        {"x": 10, "y": 10, "z": 10, "copies": 4, "weight": 100}
    ]
}

Maximum weight: with maximum weight¶

{
    "objective": "bin-packing",
    "bin_types": [
        {"x": 20, "y": 20, "z": 10, "copies": 10, "maximum_weight": 200}
    ],
    "item_types": [
        {"x": 10, "y": 10, "z": 10, "copies": 4, "weight": 100}
    ]
}

Python

Maximum weight: without maximum weight¶

import packingsolver.box as psb

instance_builder = psb.InstanceBuilder()
instance_builder.set_objective(psb.Objective.BinPacking)
instance_builder.add_bin_type(20, 20, 10, copies=10)
instance_builder.add_item_type(10, 10, 10, weight=100, copies=4)
instance = instance_builder.build()

Maximum weight: with maximum weight¶

import packingsolver.box as psb

instance_builder = psb.InstanceBuilder()
instance_builder.set_objective(psb.Objective.BinPacking)
instance_builder.add_bin_type(20, 20, 10, maximum_weight=200, copies=10)
instance_builder.add_item_type(10, 10, 10, weight=100, copies=4)
instance = instance_builder.build()

C++

Maximum weight: without maximum weight¶

#include "packingsolver/box/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::box;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(20, 20, 10);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(10, 10, 10);
instance_builder.set_item_type_weight(item_type_id, 100);
instance_builder.set_item_type_copies(item_type_id, 4);
Instance instance = instance_builder.build();

Maximum weight: with maximum weight¶

#include "packingsolver/box/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::box;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(20, 20, 10);
instance_builder.set_bin_type_maximum_weight(bin_type_id, 200);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(10, 10, 10);
instance_builder.set_item_type_weight(item_type_id, 100);
instance_builder.set_item_type_copies(item_type_id, 4);
Instance instance = instance_builder.build();
