one-dimensional solver

The one-dimensional solver solves problems with one-dimensional items and bins.

_images/onedimensional.png

These problems occur for example when cutting paper rolls, pipes, cables, steel bars; or when stacking parcels.

This dimension is called length here.

Features:

  • Objectives:

    • Knapsack

    • Bin packing

    • Bin packing with leftovers

    • Variable-sized bin packing

  • Nesting length between consecutive items

  • Maximum number of items in a bin containing an item of a given type

  • Maximum weight allowed after an item of a given type

  • Maximum weight in bins

Basic usage

An instance is described in the JSON format below. The online solver downloads its instances in this format (Download) and loads them (Load a JSON file), the command-line solver reads them (--input), and the Python package and the C++ library read them with InstanceBuilder.read. Instances can also be built directly with the InstanceBuilder of the Python package and of the C++ library.

In the following example, 52 items of different lengths are packed in bins of length 1000, using as few bins as possible:

Open the example in the online solver: Basic example, then click Solve.

Basic example
{
    "objective": "bin-packing",
    "bin_types": [
        {"length": 1000, "copies": 100}
    ],
    "item_types": [
        {"length": 193},
        {"length": 197},
        {"length": 199},
        {"length": 211},
        {"length": 223},
        {"length": 227},
        {"length": 229},
        {"length": 233},
        {"length": 239},
        {"length": 241},
        {"length": 251},
        {"length": 257},
        {"length": 263},
        {"length": 269},
        {"length": 271},
        {"length": 277},
        {"length": 281},
        {"length": 283},
        {"length": 293},
        {"length": 307},
        {"length": 311},
        {"length": 313},
        {"length": 317},
        {"length": 331},
        {"length": 337},
        {"length": 347},
        {"length": 349},
        {"length": 353},
        {"length": 359},
        {"length": 367},
        {"length": 373},
        {"length": 379},
        {"length": 383},
        {"length": 389},
        {"length": 397},
        {"length": 401},
        {"length": 409},
        {"length": 419},
        {"length": 421},
        {"length": 431},
        {"length": 433},
        {"length": 439},
        {"length": 443},
        {"length": 449},
        {"length": 457},
        {"length": 461},
        {"length": 463},
        {"length": 467},
        {"length": 479},
        {"length": 487},
        {"length": 491},
        {"length": 499}
    ]
}

Solve it with the command-line solver:

packingsolver_onedimensional \
        --input instance.json \
        --certificate solution.csv \
        --time-limit 5
Basic example
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPacking)
instance_builder.add_bin_type(1000, copies=100)
instance_builder.add_item_type(193)
instance_builder.add_item_type(197)
instance_builder.add_item_type(199)
instance_builder.add_item_type(211)
instance_builder.add_item_type(223)
instance_builder.add_item_type(227)
instance_builder.add_item_type(229)
instance_builder.add_item_type(233)
instance_builder.add_item_type(239)
instance_builder.add_item_type(241)
instance_builder.add_item_type(251)
instance_builder.add_item_type(257)
instance_builder.add_item_type(263)
instance_builder.add_item_type(269)
instance_builder.add_item_type(271)
instance_builder.add_item_type(277)
instance_builder.add_item_type(281)
instance_builder.add_item_type(283)
instance_builder.add_item_type(293)
instance_builder.add_item_type(307)
instance_builder.add_item_type(311)
instance_builder.add_item_type(313)
instance_builder.add_item_type(317)
instance_builder.add_item_type(331)
instance_builder.add_item_type(337)
instance_builder.add_item_type(347)
instance_builder.add_item_type(349)
instance_builder.add_item_type(353)
instance_builder.add_item_type(359)
instance_builder.add_item_type(367)
instance_builder.add_item_type(373)
instance_builder.add_item_type(379)
instance_builder.add_item_type(383)
instance_builder.add_item_type(389)
instance_builder.add_item_type(397)
instance_builder.add_item_type(401)
instance_builder.add_item_type(409)
instance_builder.add_item_type(419)
instance_builder.add_item_type(421)
instance_builder.add_item_type(431)
instance_builder.add_item_type(433)
instance_builder.add_item_type(439)
instance_builder.add_item_type(443)
instance_builder.add_item_type(449)
instance_builder.add_item_type(457)
instance_builder.add_item_type(461)
instance_builder.add_item_type(463)
instance_builder.add_item_type(467)
instance_builder.add_item_type(479)
instance_builder.add_item_type(487)
instance_builder.add_item_type(491)
instance_builder.add_item_type(499)
instance = instance_builder.build()

Solve it:

parameters = pso.OptimizeParameters()
parameters.time_limit = 5
output = pso.optimize(instance, parameters)
output.solution.write("solution.csv")
Basic example
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(1000);
instance_builder.set_bin_type_copies(bin_type_id, 100);
instance_builder.add_item_type(193);
instance_builder.add_item_type(197);
instance_builder.add_item_type(199);
instance_builder.add_item_type(211);
instance_builder.add_item_type(223);
instance_builder.add_item_type(227);
instance_builder.add_item_type(229);
instance_builder.add_item_type(233);
instance_builder.add_item_type(239);
instance_builder.add_item_type(241);
instance_builder.add_item_type(251);
instance_builder.add_item_type(257);
instance_builder.add_item_type(263);
instance_builder.add_item_type(269);
instance_builder.add_item_type(271);
instance_builder.add_item_type(277);
instance_builder.add_item_type(281);
instance_builder.add_item_type(283);
instance_builder.add_item_type(293);
instance_builder.add_item_type(307);
instance_builder.add_item_type(311);
instance_builder.add_item_type(313);
instance_builder.add_item_type(317);
instance_builder.add_item_type(331);
instance_builder.add_item_type(337);
instance_builder.add_item_type(347);
instance_builder.add_item_type(349);
instance_builder.add_item_type(353);
instance_builder.add_item_type(359);
instance_builder.add_item_type(367);
instance_builder.add_item_type(373);
instance_builder.add_item_type(379);
instance_builder.add_item_type(383);
instance_builder.add_item_type(389);
instance_builder.add_item_type(397);
instance_builder.add_item_type(401);
instance_builder.add_item_type(409);
instance_builder.add_item_type(419);
instance_builder.add_item_type(421);
instance_builder.add_item_type(431);
instance_builder.add_item_type(433);
instance_builder.add_item_type(439);
instance_builder.add_item_type(443);
instance_builder.add_item_type(449);
instance_builder.add_item_type(457);
instance_builder.add_item_type(461);
instance_builder.add_item_type(463);
instance_builder.add_item_type(467);
instance_builder.add_item_type(479);
instance_builder.add_item_type(487);
instance_builder.add_item_type(491);
instance_builder.add_item_type(499);
Instance instance = instance_builder.build();

Solve it:

#include "packingsolver/onedimensional/optimize.hpp"

OptimizeParameters parameters;
parameters.timer.set_time_limit(5);
onedimensional::Output output = optimize(instance, parameters);
output.solution_pool.best().write("solution.csv");

Link the target PackingSolver::onedimensional of the CMake project.

The solution:

_images/onedimensional_solution.png

Instance format

An instance is a JSON object with the following fields:

Field

Description

objective

Mandatory. One of knapsack, bin-packing, bin-packing-with-leftovers, variable-sized-bin-packing; see Objectives

bin_types

Mandatory. The bin types (array)

item_types

Mandatory. The item types (array)

A bin type has the following fields:

Field

Description

length

Mandatory. The length of the bins (integer)

copies

The number of copies of the bin type. Default: 1; -1 for an unlimited number of copies

copies_min

The minimum number of copies of the bin type to use, for the variable-sized bin packing objective. Default: 0

cost

The cost of a bin of this type, for the variable-sized bin packing objective. Default: the length of the bin

maximum_weight

See Maximum total weight in a bin. Default: no limit

eligibility_ids

The eligibility ids of the bin type (array): an item type with an eligibility id can only be packed in the bin types which have it. Default: none

An item type has the following fields:

Field

Description

length

Mandatory. The length of the items (integer)

copies

The number of copies of the item type. Default: 1; -1 for an unlimited number of copies (knapsack objective only)

copies_min

The minimum number of copies of the item type to pack, for the knapsack objective. Default: 0

profit

The profit of an item of this type, for the knapsack objective. Default: the length of the item

nesting_length

See Nesting length. Default: 0

maximum_stackability

See Maximum number of items in a bin containing an item of a given type. Default: no limit

weight

See Maximum total weight in a bin. Default: 0

maximum_weight_after

See Maximum weight allowed after an item of a given type. Default: no limit

eligibility_id

The eligibility id of the item type. Default: none (the items can be packed in any bin type)

In Python, the optional fields of the bin types and of the item types are keyword arguments of InstanceBuilder.add_bin_type and InstanceBuilder.add_item_type, with the same names. In C++, they are set with the InstanceBuilder.set_bin_type_<field> and InstanceBuilder.set_item_type_<field> methods; the eligibility ids of a bin type are added with InstanceBuilder.add_bin_type_eligibility, and the eligibility id of an item type is set with InstanceBuilder.set_item_type_eligibility.

Certificate format

The solution is written (command-line option --certificate, Solution.write) as a CSV file with the columns TYPE, ID, COPIES, BIN, X, LX. Each line is:

  • a bin (TYPE BIN): ID is its bin type, COPIES the number of identical bins it stands for, BIN its index in the solution, and LX its length;

  • an item (TYPE ITEM): ID is its item type, BIN the index of its bin, X the position of its start in the bin, and LX its length.

solution.csv
TYPE,ID,COPIES,BIN,X,LX
BIN,0,1,0,0,1000
ITEM,50,1,0,0,491
ITEM,51,1,0,491,499
BIN,0,1,1,0,1000
ITEM,48,1,1,0,479
ITEM,49,1,1,479,487
BIN,0,1,2,0,1000

To visualize a solution, open it in the solution viewer, or run:

python3 scripts/visualize.py solution.csv

Nesting length

In some cases, when two items are placed consecutively in a bin, the second item nests in the first one, which reduces the length it occupies. This length difference is called the nesting length of the second item.

_images/onedimensional_nesting_length.jpeg

The stackable crates above illustrate the idea: two of them nested (left) take up less length than twice the length of one alone (right), since the legs of the second crate sink into the one before it.

In the Item types table, click More on a row and fill its Nesting length.

In an item type: "nesting_length": 10.

instance_builder.add_item_type(length, nesting_length=10)

instance_builder.set_item_type_nesting_length(item_type_id, 10);

In the following example, 8 items of length 70 are packed in bins of length 500. Without nesting, they need a length of 560, so 2 bins are needed. With a nesting length of 10, every item but the first one occupies a length of 60: the 8 items need a length of 490, and fit in a single bin.

Without nesting length

With nesting length

oned_nesting_length_no

oned_nesting_length_yes

Nesting length: without nesting length
{
    "objective": "bin-packing",
    "bin_types": [
        {"length": 500, "copies": 10}
    ],
    "item_types": [
        {"length": 70, "copies": 8}
    ]
}
Nesting length: with nesting length
{
    "objective": "bin-packing",
    "bin_types": [
        {"length": 500, "copies": 10}
    ],
    "item_types": [
        {"length": 70, "copies": 8, "nesting_length": 10}
    ]
}
Nesting length: without nesting length
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPacking)
instance_builder.add_bin_type(500, copies=10)
instance_builder.add_item_type(70, copies=8)
instance = instance_builder.build()
Nesting length: with nesting length
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPacking)
instance_builder.add_bin_type(500, copies=10)
instance_builder.add_item_type(70, nesting_length=10, copies=8)
instance = instance_builder.build()
Nesting length: without nesting length
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(500);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(70);
instance_builder.set_item_type_copies(item_type_id, 8);
Instance instance = instance_builder.build();
Nesting length: with nesting length
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(500);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(70);
instance_builder.set_item_type_nesting_length(item_type_id, 10);
instance_builder.set_item_type_copies(item_type_id, 8);
Instance instance = instance_builder.build();

Maximum number of items in a bin containing an item of a given type

For each item type, it is possible to limit the number of items in a bin that contains an item of this type. This limit is called the maximum stackability of the item type.

In the Item types table, click More on a row and fill its Maximum stackability.

In an item type: "maximum_stackability": 3.

instance_builder.add_item_type(length, maximum_stackability=3)

instance_builder.set_item_type_maximum_stackability(item_type_id, 3);

In the following example, 3 items of length 200 and 4 items of length 100 are packed in bins of length 500. Without a maximum stackability, they fit in 2 bins: 200 + 200 + 100 and 200 + 100 + 100 + 100. With a maximum stackability of 3 for the items of length 200, the second bin isn’t valid anymore, and 3 bins are needed.

Without maximum stackability

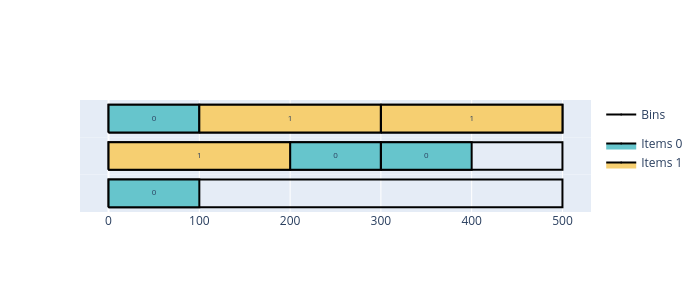

With maximum stackability

oned_maximum_stackability_no

oned_maximum_stackability_yes

Open the examples in the online solver: Maximum stackability: no limit, Maximum stackability: with a limit.

Maximum stackability: no limit
{
    "objective": "bin-packing",
    "bin_types": [
        {"length": 500, "copies": 10}
    ],
    "item_types": [
        {"length": 200, "copies": 3},
        {"length": 100, "copies": 4}
    ]
}
Maximum stackability: with a limit
{
    "objective": "bin-packing",
    "bin_types": [
        {"length": 500, "copies": 10}
    ],
    "item_types": [
        {"length": 200, "copies": 3, "maximum_stackability": 3},
        {"length": 100, "copies": 4, "maximum_stackability": 100}
    ]
}
Maximum stackability: no limit
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPacking)
instance_builder.add_bin_type(500, copies=10)
instance_builder.add_item_type(200, copies=3)
instance_builder.add_item_type(100, copies=4)
instance = instance_builder.build()
Maximum stackability: with a limit
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPacking)
instance_builder.add_bin_type(500, copies=10)
instance_builder.add_item_type(200, maximum_stackability=3, copies=3)
instance_builder.add_item_type(100, maximum_stackability=100, copies=4)
instance = instance_builder.build()
Maximum stackability: no limit
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(500);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(200);
instance_builder.set_item_type_copies(item_type_id, 3);
item_type_id = instance_builder.add_item_type(100);
instance_builder.set_item_type_copies(item_type_id, 4);
Instance instance = instance_builder.build();
Maximum stackability: with a limit
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(500);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(200);
instance_builder.set_item_type_maximum_stackability(item_type_id, 3);
instance_builder.set_item_type_copies(item_type_id, 3);
item_type_id = instance_builder.add_item_type(100);
instance_builder.set_item_type_maximum_stackability(item_type_id, 100);
instance_builder.set_item_type_copies(item_type_id, 4);
Instance instance = instance_builder.build();

Maximum total weight in a bin

Each bin type may have a maximum weight: the total weight of the items packed in a bin must not exceed it.

Fill the Weight column of the Item types table, and the Maximum weight column of the Bin types table.

In an item type: "weight": 100; in a bin type: "maximum_weight": 200.

instance_builder.add_item_type(length, weight=100) and instance_builder.add_bin_type(length, maximum_weight=200)

instance_builder.set_item_type_weight(item_type_id, 100); and instance_builder.set_bin_type_maximum_weight(bin_type_id, 200);

In the following example, 4 items of length 200 and of weight 100 are packed in bins of length 800. Without a maximum weight, they fit in a single bin. With a maximum weight of 200, at most 2 items can share a bin, so 2 bins are needed.

Without maximum weight

With maximum weight

oned_maximum_weight_no

oned_maximum_weight_yes

Maximum weight: without maximum weight
{
    "objective": "bin-packing",
    "bin_types": [
        {"length": 800, "copies": 10}
    ],
    "item_types": [
        {"length": 200, "copies": 4, "weight": 100}
    ]
}
Maximum weight: with maximum weight
{
    "objective": "bin-packing",
    "bin_types": [
        {"length": 800, "copies": 10, "maximum_weight": 200}
    ],
    "item_types": [
        {"length": 200, "copies": 4, "weight": 100}
    ]
}
Maximum weight: without maximum weight
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPacking)
instance_builder.add_bin_type(800, copies=10)
instance_builder.add_item_type(200, weight=100, copies=4)
instance = instance_builder.build()
Maximum weight: with maximum weight
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPacking)
instance_builder.add_bin_type(800, maximum_weight=200, copies=10)
instance_builder.add_item_type(200, weight=100, copies=4)
instance = instance_builder.build()
Maximum weight: without maximum weight
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(800);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(200);
instance_builder.set_item_type_weight(item_type_id, 100);
instance_builder.set_item_type_copies(item_type_id, 4);
Instance instance = instance_builder.build();
Maximum weight: with maximum weight
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPacking);
BinTypeId bin_type_id = instance_builder.add_bin_type(800);
instance_builder.set_bin_type_maximum_weight(bin_type_id, 200);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(200);
instance_builder.set_item_type_weight(item_type_id, 100);
instance_builder.set_item_type_copies(item_type_id, 4);
Instance instance = instance_builder.build();

Maximum weight allowed after an item of a given type

Each item type may have a maximum weight for the items packed after it in its bin. This corresponds to the maximum weight that an item can support when the items are stacked on each other.

In the Item types table, click More on a row and fill its Maximum weight after.

In an item type: "maximum_weight_after": 150.

instance_builder.add_item_type(length, maximum_weight_after=150)

instance_builder.set_item_type_maximum_weight_after(item_type_id, 150);

In the following example, 2 items of length 240 (weight 200) and 3 items of length 160 (weight 100) are packed in bins of length 500 (bin-packing-with-leftovers objective). Without a limit, 2 bins are enough: one with the 2 items of length 240, the other with the 3 items of length 160. With a maximum weight after of 150 for the items of length 240, two of them can’t share a bin anymore (an item of length 240 weighs 200), while an item of length 160 (weight 100) can still follow one. Each item of length 240 is then packed in its own bin with an item of length 160, and a third bin is needed for the last item of length 160.

Without maximum weight after

With maximum weight after

oned_maximum_weight_after_no

oned_maximum_weight_after_yes

Open the examples in the online solver: Maximum weight after: no limit, Maximum weight after: with a limit.

Maximum weight after: no limit
{
    "objective": "bin-packing-with-leftovers",
    "bin_types": [
        {"length": 500, "copies": 10}
    ],
    "item_types": [
        {"length": 240, "copies": 2, "weight": 200},
        {"length": 160, "copies": 3, "weight": 100}
    ]
}
Maximum weight after: with a limit
{
    "objective": "bin-packing-with-leftovers",
    "bin_types": [
        {"length": 500, "copies": 10}
    ],
    "item_types": [
        {"length": 240, "copies": 2, "weight": 200, "maximum_weight_after": 150},
        {"length": 160, "copies": 3, "weight": 100, "maximum_weight_after": 10000}
    ]
}
Maximum weight after: no limit
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPackingWithLeftovers)
instance_builder.add_bin_type(500, copies=10)
instance_builder.add_item_type(240, weight=200, copies=2)
instance_builder.add_item_type(160, weight=100, copies=3)
instance = instance_builder.build()
Maximum weight after: with a limit
import packingsolver.onedimensional as pso

instance_builder = pso.InstanceBuilder()
instance_builder.set_objective(pso.Objective.BinPackingWithLeftovers)
instance_builder.add_bin_type(500, copies=10)
instance_builder.add_item_type(
        240,
        weight=200,
        maximum_weight_after=150,
        copies=2,
)
instance_builder.add_item_type(
        160,
        weight=100,
        maximum_weight_after=10000,
        copies=3,
)
instance = instance_builder.build()
Maximum weight after: no limit
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPackingWithLeftovers);
BinTypeId bin_type_id = instance_builder.add_bin_type(500);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(240);
instance_builder.set_item_type_weight(item_type_id, 200);
instance_builder.set_item_type_copies(item_type_id, 2);
item_type_id = instance_builder.add_item_type(160);
instance_builder.set_item_type_weight(item_type_id, 100);
instance_builder.set_item_type_copies(item_type_id, 3);
Instance instance = instance_builder.build();
Maximum weight after: with a limit
#include "packingsolver/onedimensional/instance_builder.hpp"

using namespace packingsolver;
using namespace packingsolver::onedimensional;

InstanceBuilder instance_builder;
instance_builder.set_objective(Objective::BinPackingWithLeftovers);
BinTypeId bin_type_id = instance_builder.add_bin_type(500);
instance_builder.set_bin_type_copies(bin_type_id, 10);
ItemTypeId item_type_id = instance_builder.add_item_type(240);
instance_builder.set_item_type_weight(item_type_id, 200);
instance_builder.set_item_type_maximum_weight_after(item_type_id, 150);
instance_builder.set_item_type_copies(item_type_id, 2);
item_type_id = instance_builder.add_item_type(160);
instance_builder.set_item_type_weight(item_type_id, 100);
instance_builder.set_item_type_maximum_weight_after(item_type_id, 10000);
instance_builder.set_item_type_copies(item_type_id, 3);
Instance instance = instance_builder.build();
