Irregular solver

The Irregular solver solves problems where items are arbitrary two-dimensional polygons that must be placed inside polygonal bins without overlapping.

These problems occur for example in the textile, leather, sheet metal, and wood industries.

Features:

• Objectives:

  • Knapsack

  • Bin packing

  • Bin packing with leftovers

  • Open dimension X

  • Open dimension Y

  • Open dimension XY

  • Variable-sized bin packing

  • Feasibility

• Item types

  • Polygon shapes (convex or concave)

  • Rectangular and circular shapes

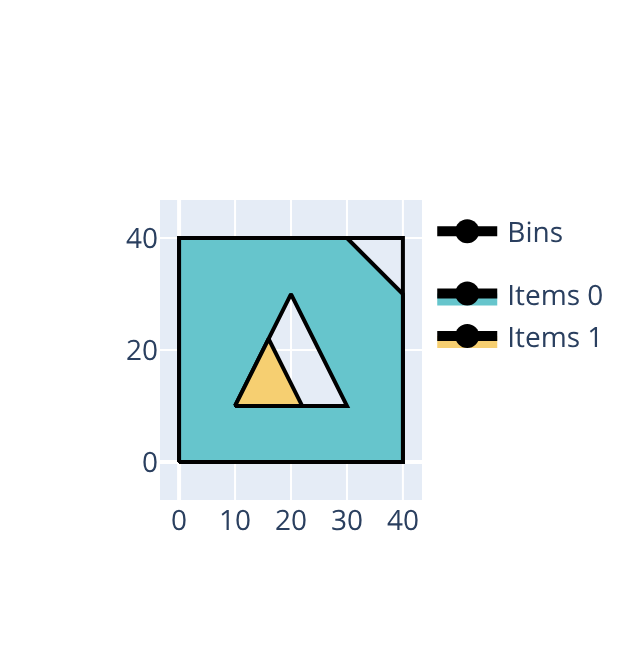

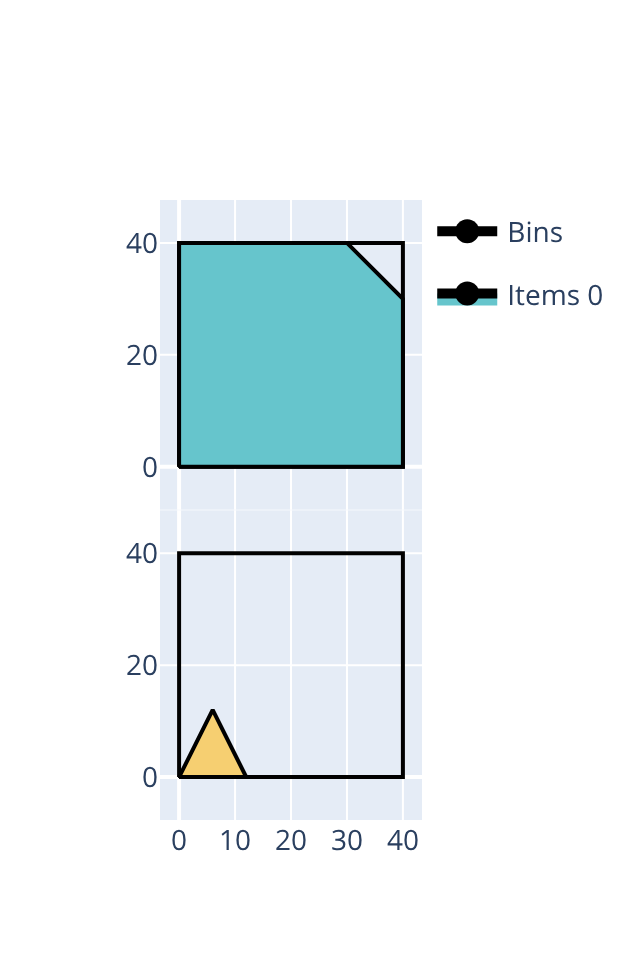

  • Holes inside shapes

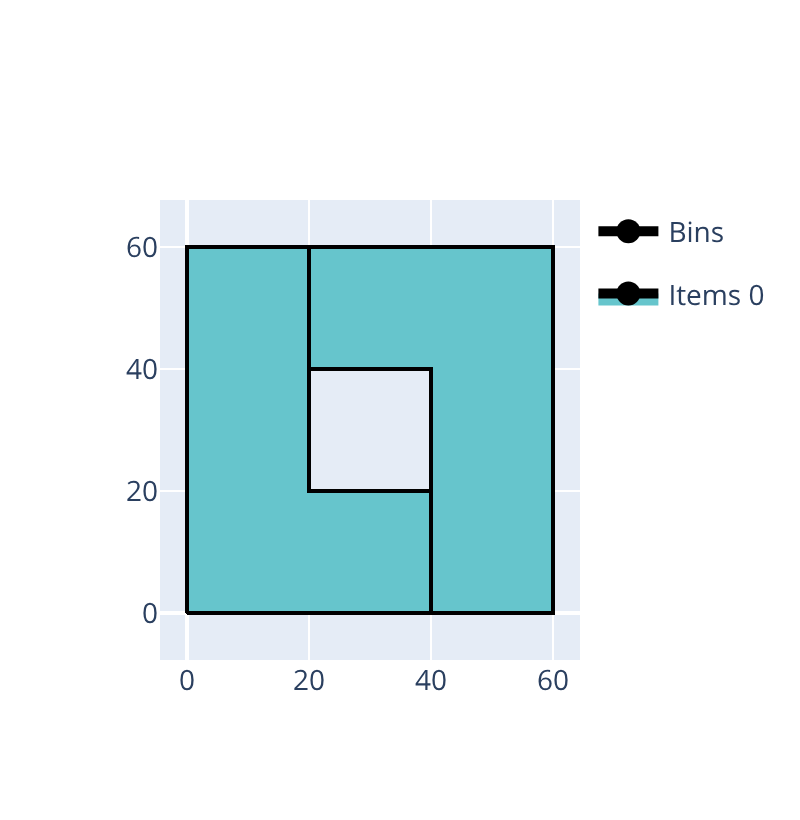

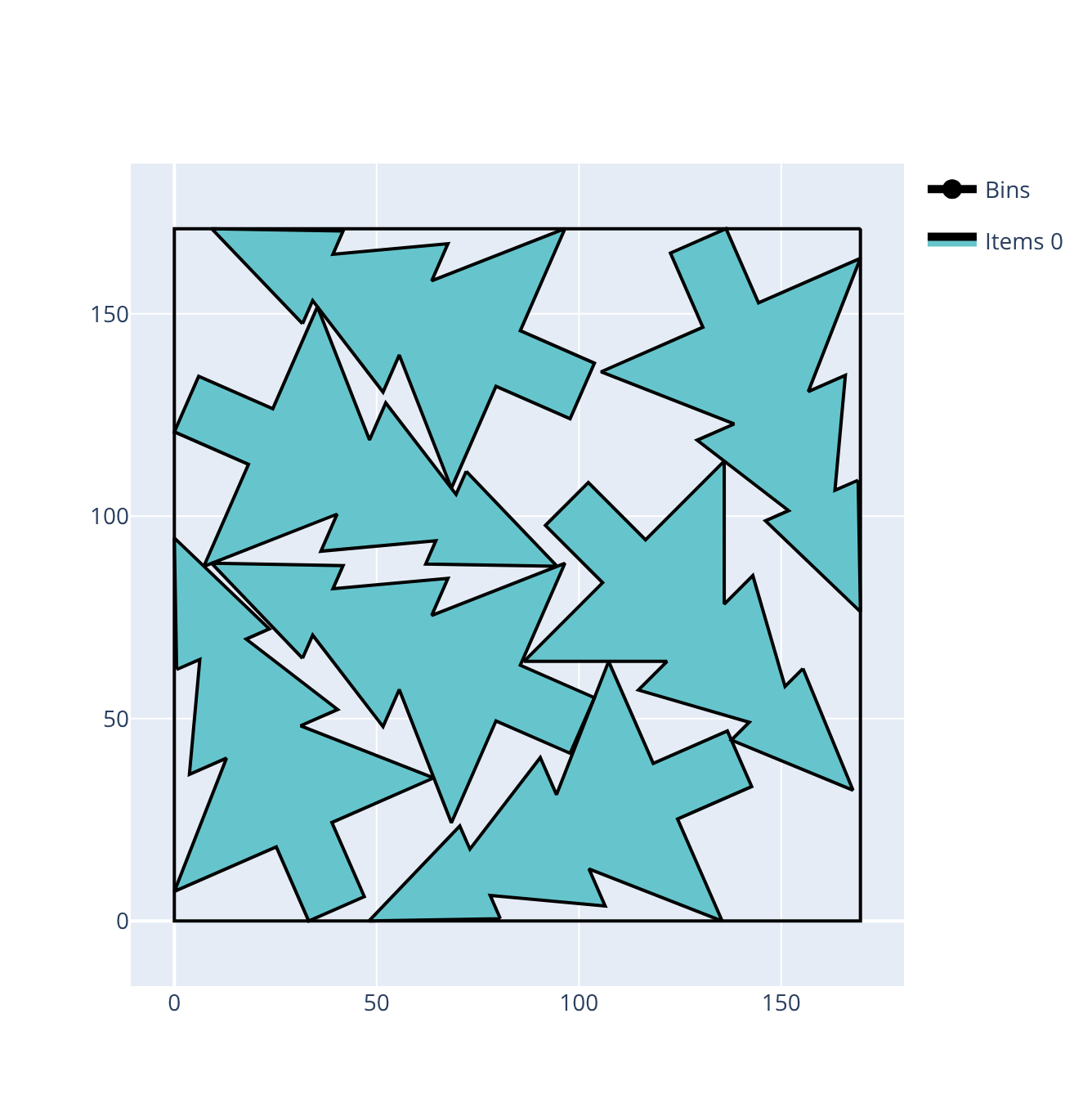

  • Discrete and continuous rotations

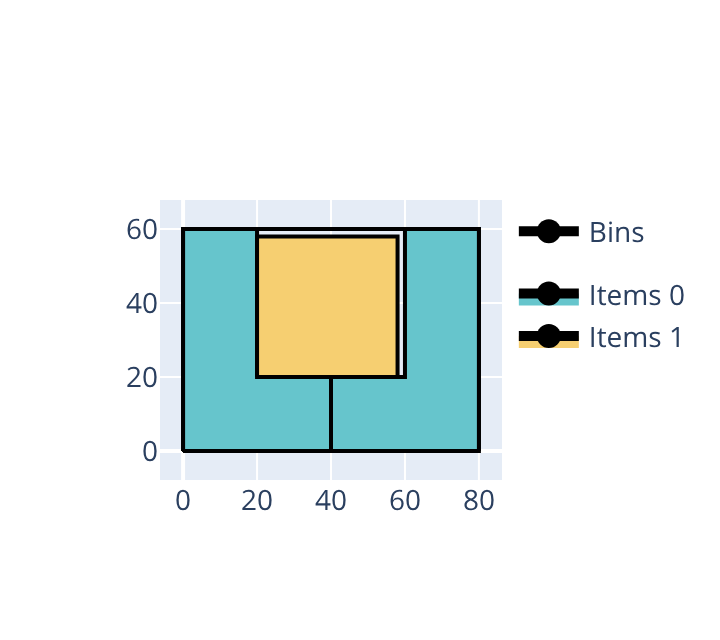

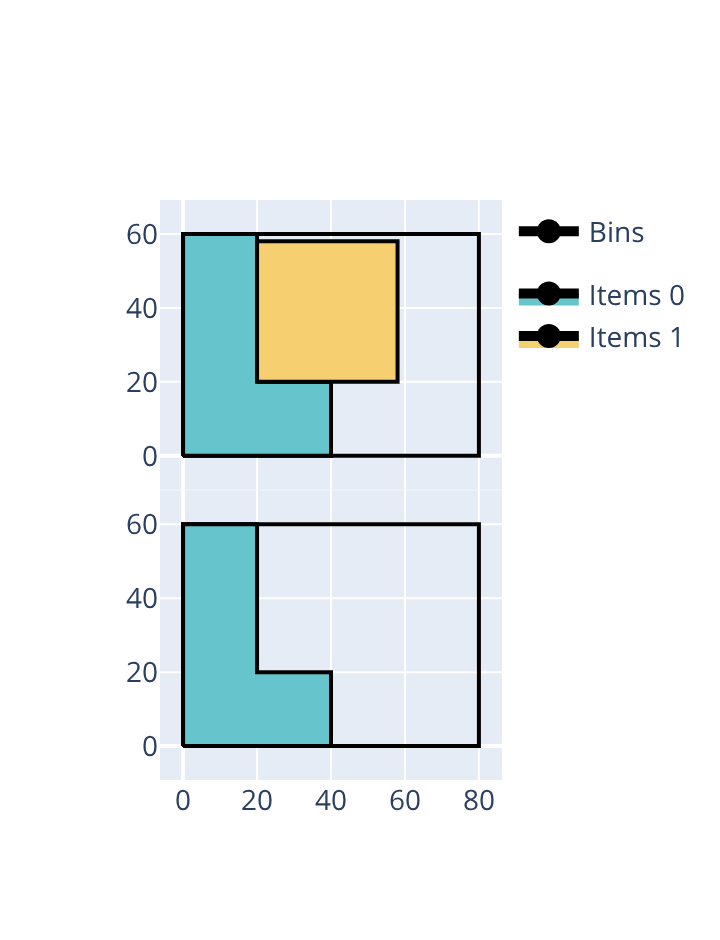

  • Mirroring (axial symmetry)

  • Multiple item shapes

• Bin types

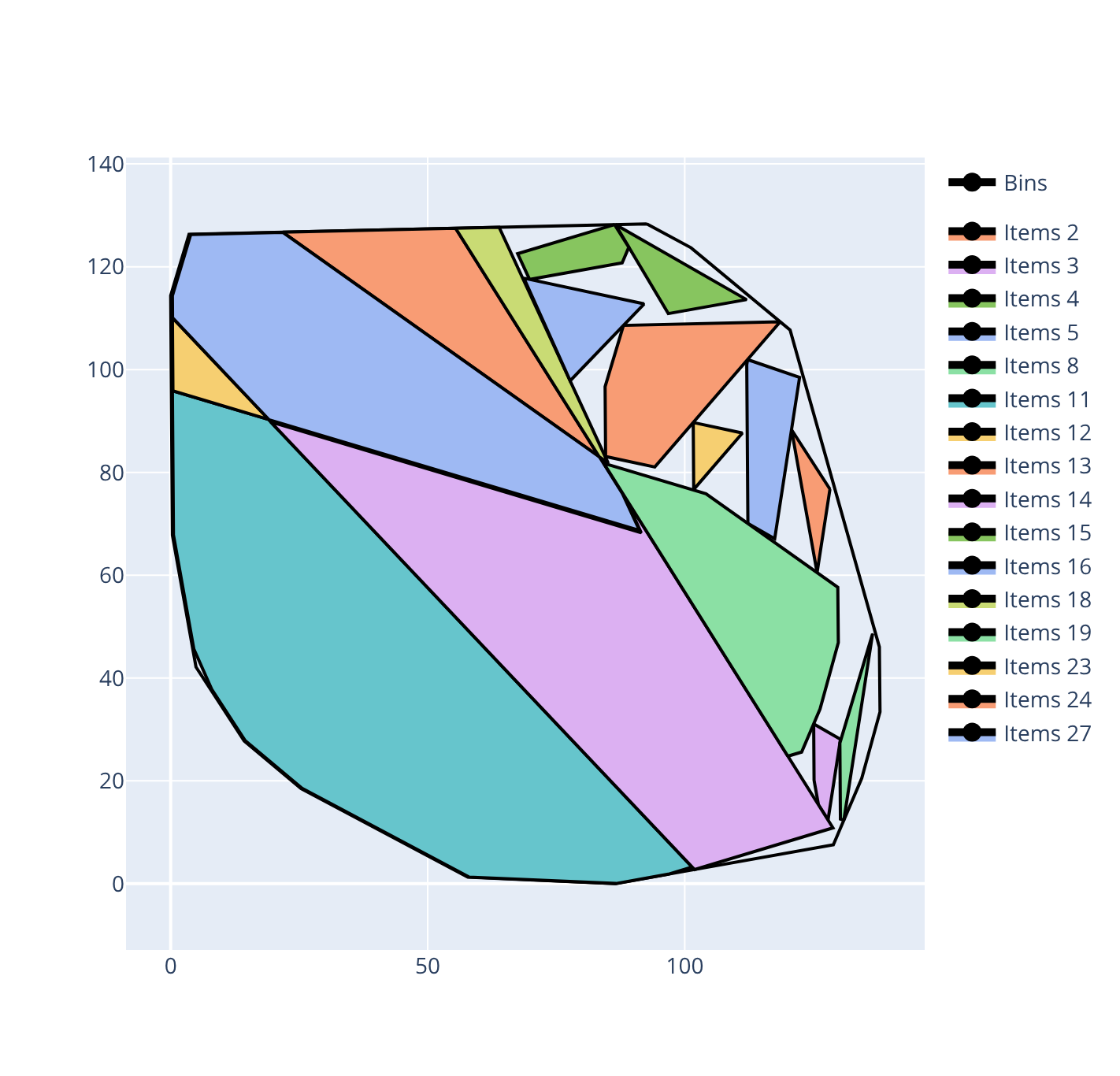

  • Polygon, rectangle and circle shapes

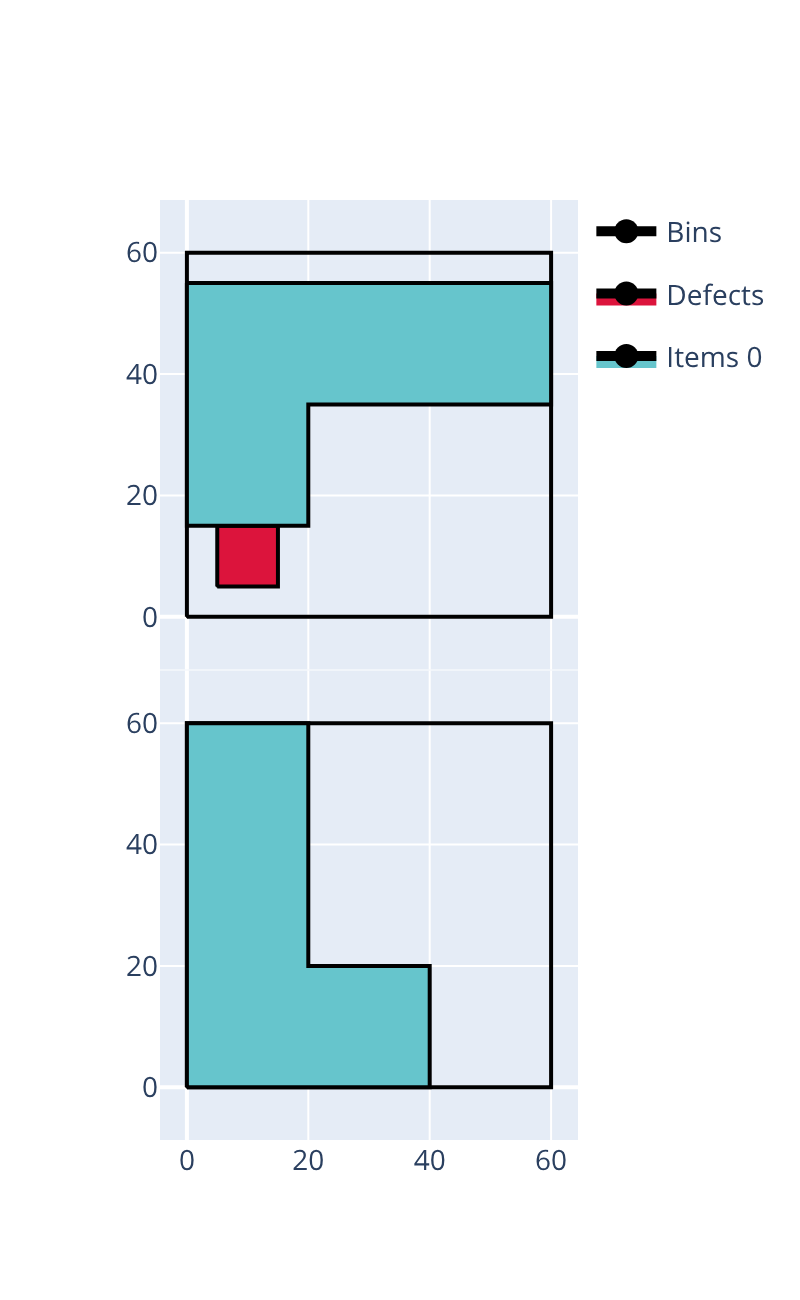

  • Defects

  • Item-bin minimum spacing

• Spacing constraints

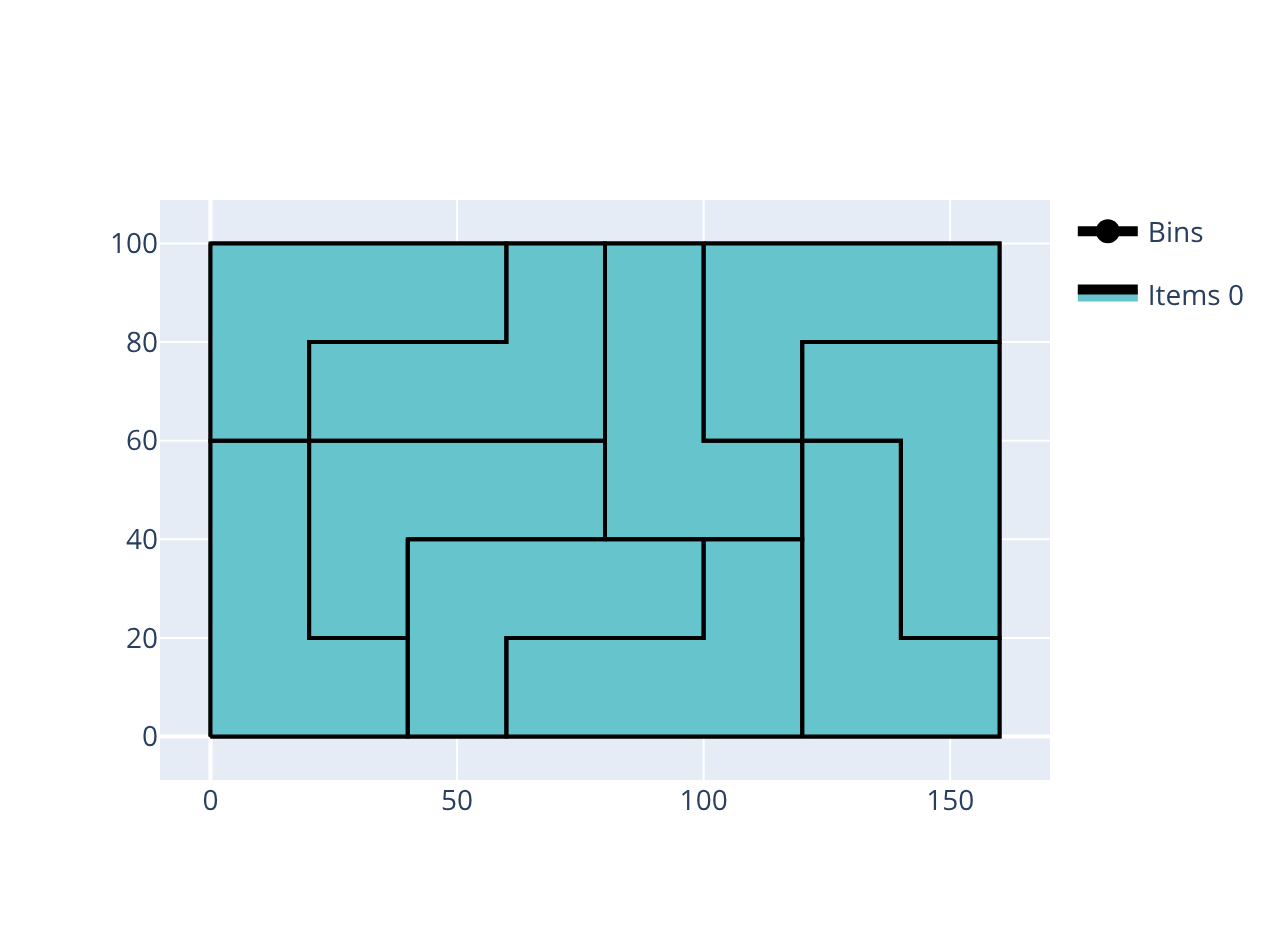

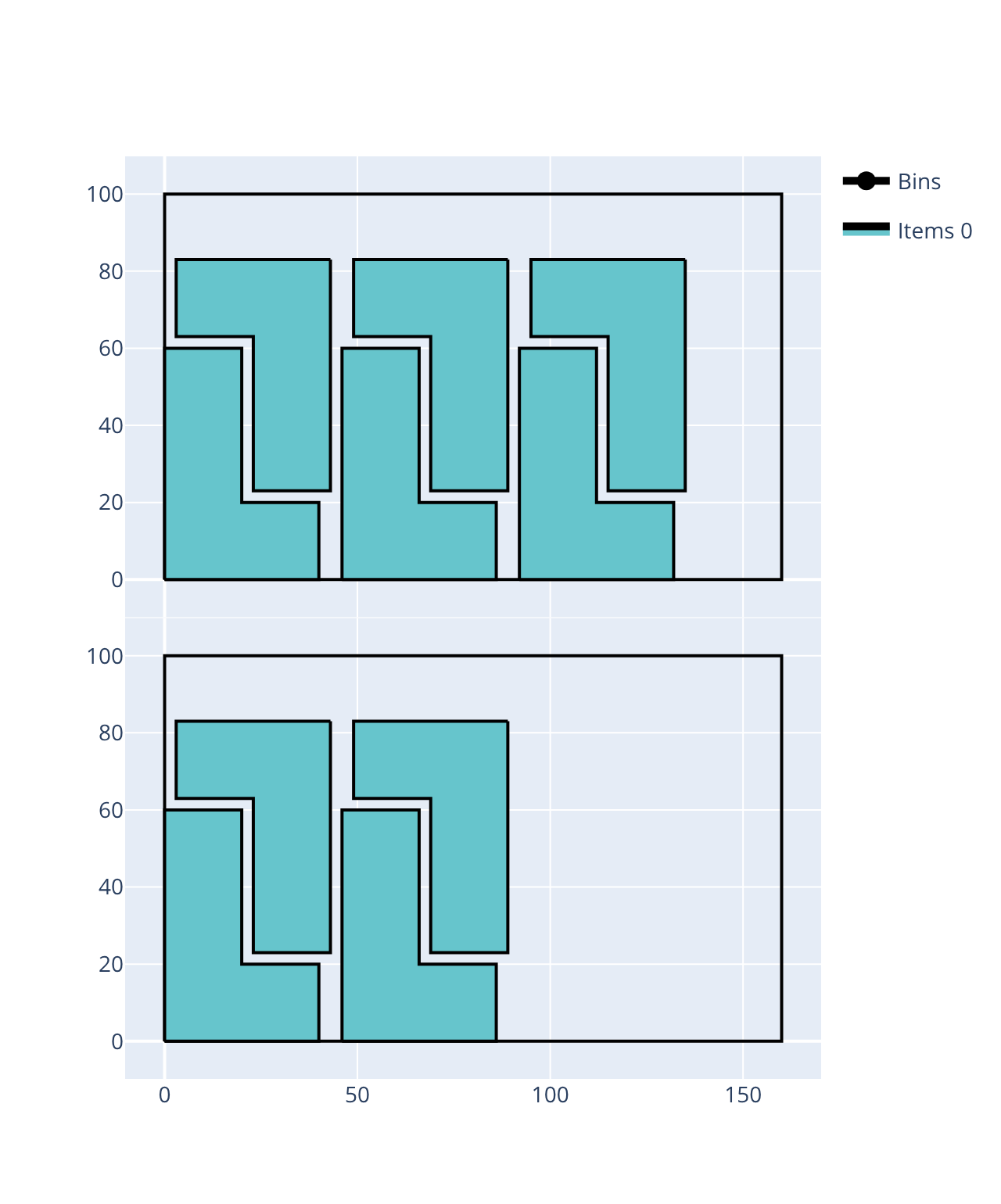

  • Item-item minimum spacing

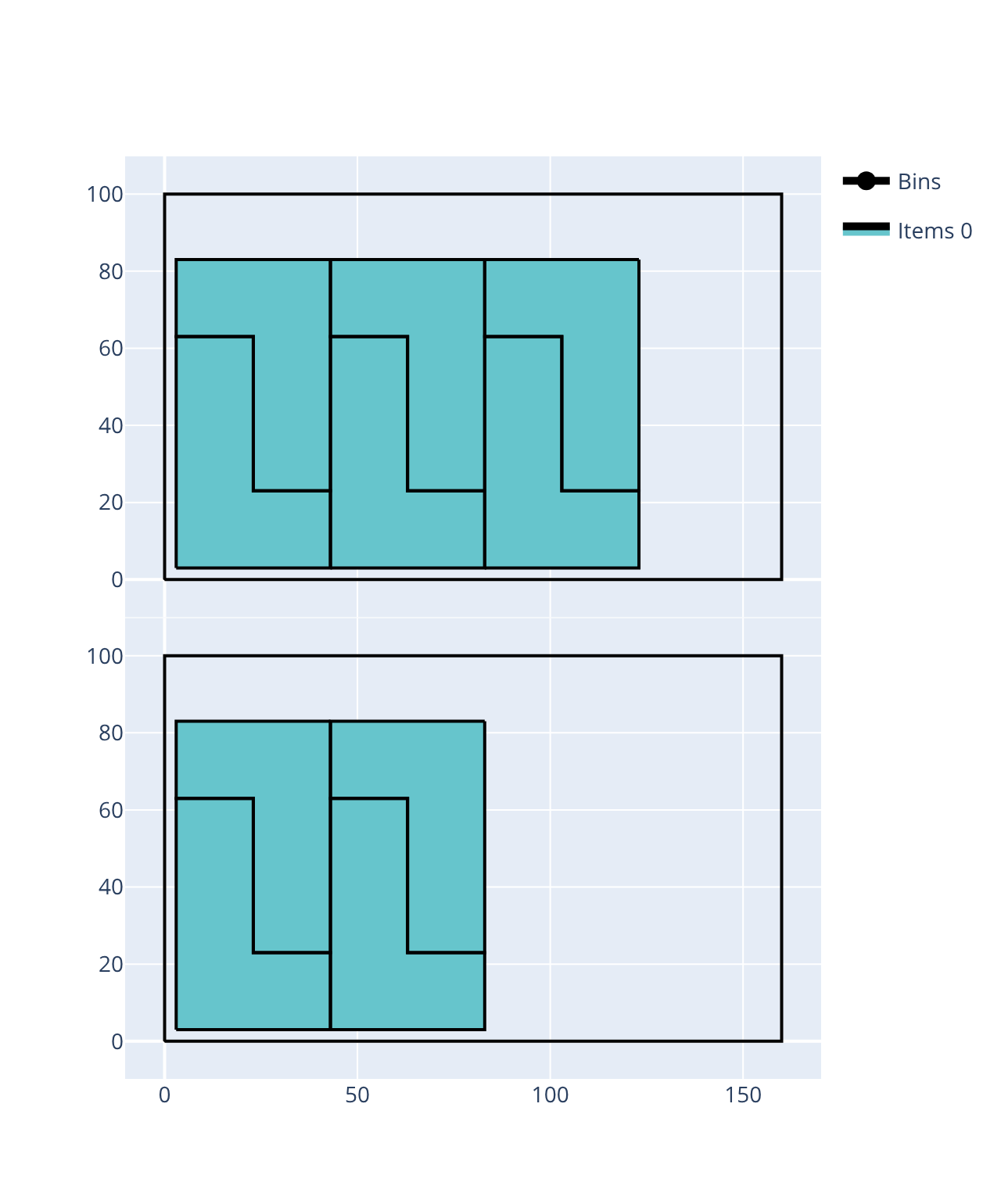

  • Item-bin minimum spacing

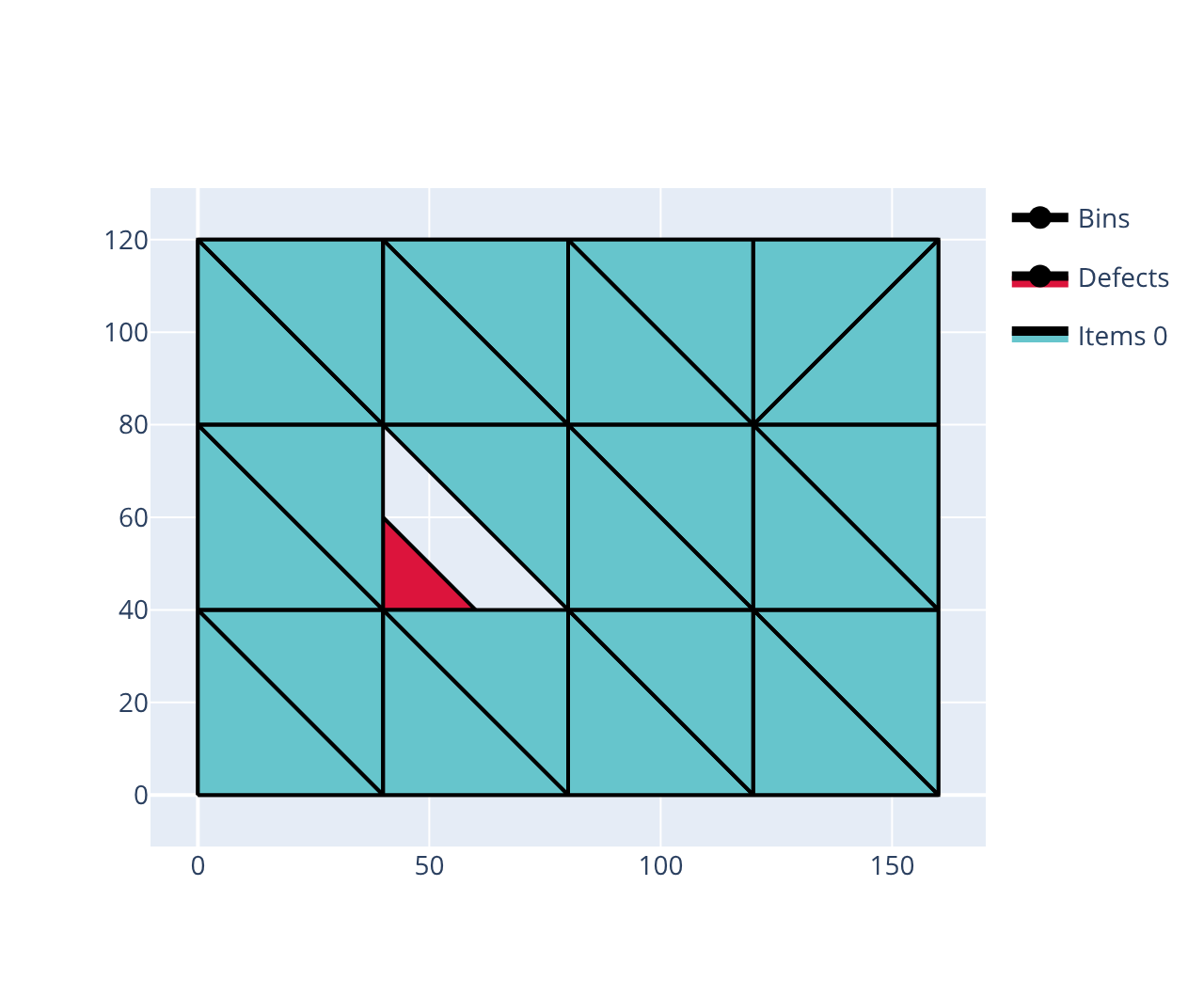

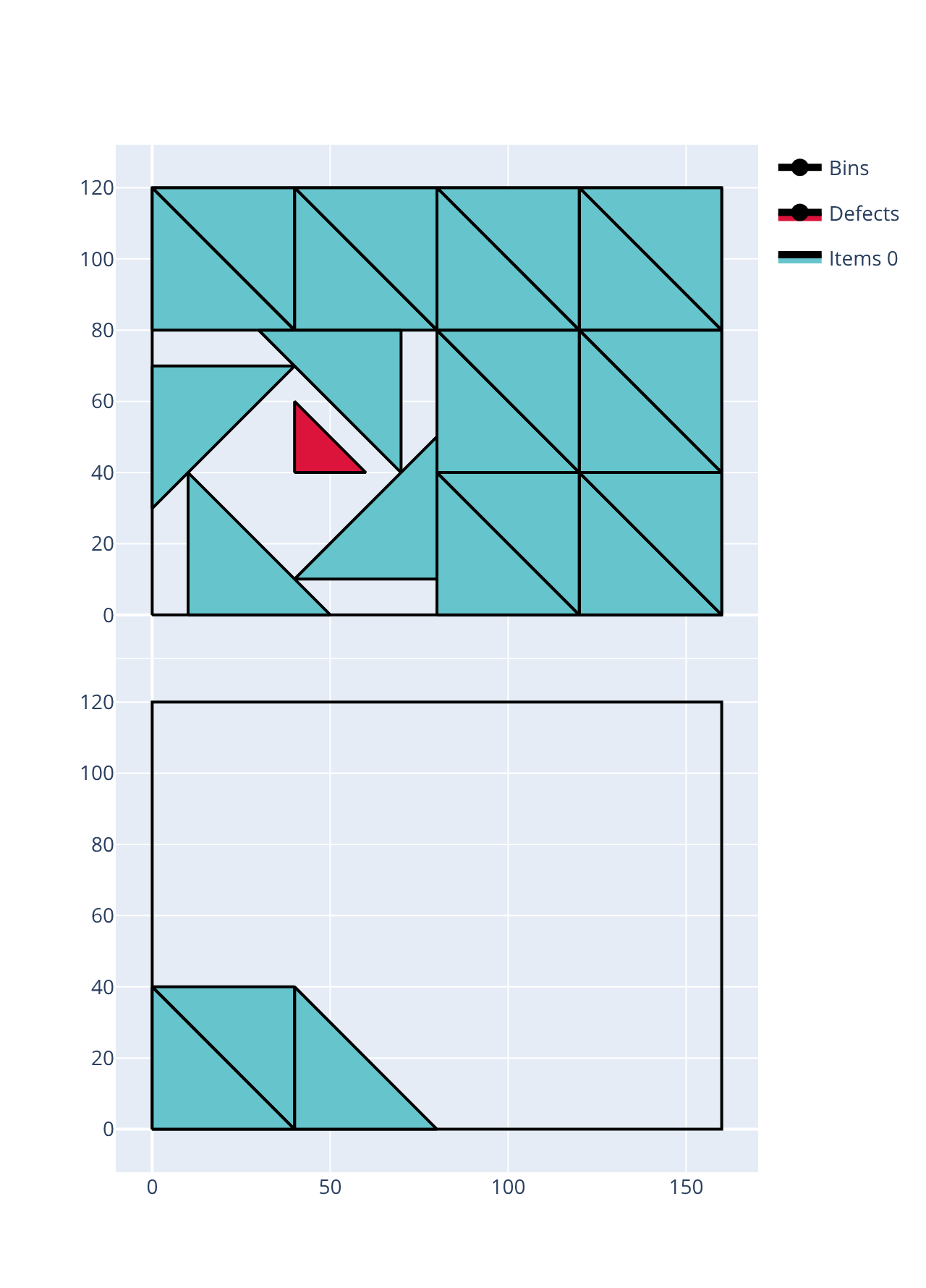

  • Item-defect minimum spacing

Basic usage

The Irregular solver takes as input a single JSON file and outputs:

• a solution JSON file; option: --certificate solution.json

The input file is a JSON file containing:

• The objective (objective field)

• Optional global parameters (parameters field)

• A list of bin types (bin_types field)

• A list of item types (item_types field)

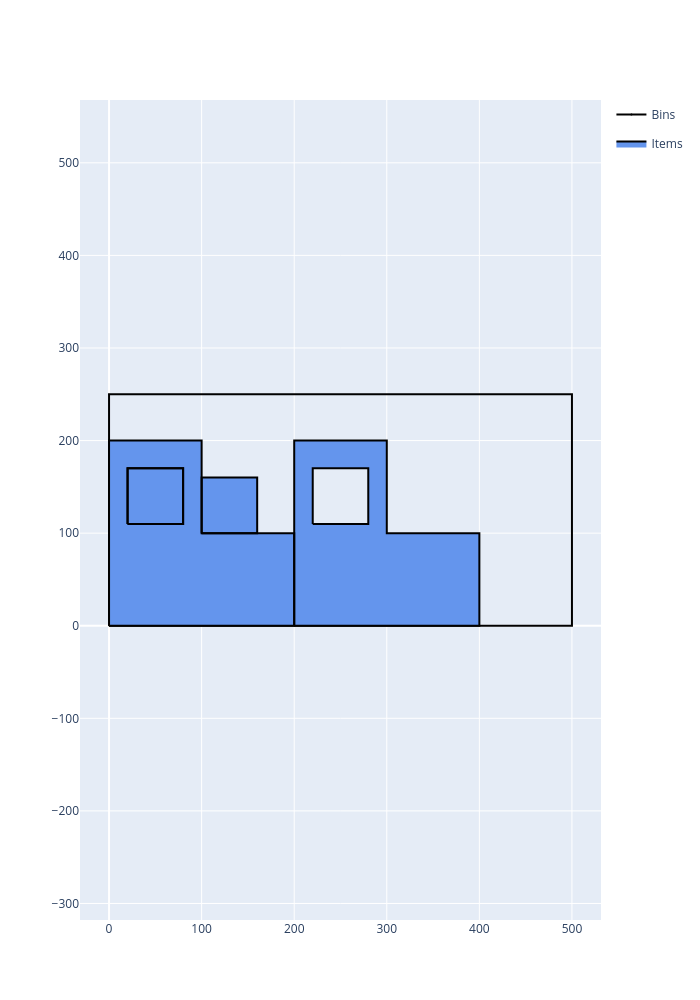

Example

This example has two item types:

• An L-shaped piece (non-convex outer boundary) with a rectangular hole in its vertical arm. Two copies are packed, fixed at 0° rotation.

• A small square (60×60) that fits exactly into the hole of the L-shaped piece. Two copies are packed.

The objective is bin-packing-with-leftovers in a 500×250 bin. The solver packs all four items in one bin and maximizes the leftover value. The optimal solution places each small square inside the hole of one L-shaped piece.

instance.json

{
  "objective": "bin-packing-with-leftovers",
  "bin_types": [
    {
      "type": "rectangle",
      "width": 500,
      "height": 250
    }
  ],
  "item_types": [
    {
      "copies": 2,
      "type": "polygon",
      "vertices": [
        {"x": 0,   "y": 0},
        {"x": 200, "y": 0},
        {"x": 200, "y": 100},
        {"x": 100, "y": 100},
        {"x": 100, "y": 200},
        {"x": 0,   "y": 200}
      ],
      "holes": [
        {
          "type": "polygon",
          "vertices": [
            {"x": 20, "y": 110},
            {"x": 80, "y": 110},
            {"x": 80, "y": 170},
            {"x": 20, "y": 170}
          ]
        }
      ],
      "allowed_rotations": [
        {"start": 0, "end": 0}
      ]
    },
    {
      "copies": 2,
      "type": "polygon",
      "vertices": [
        {"x": 0,  "y": 0},
        {"x": 60, "y": 0},
        {"x": 60, "y": 60},
        {"x": 0,  "y": 60}
      ]
    }
  ]
}

Solve:

packingsolver_irregular \
        --input instance.json \
        --certificate solution.json

=================================
          PackingSolver
=================================

Problem type
------------
Irregular

Instance
--------
Objective:                    BinPackingWithLeftovers
Number of item types:         2
Number of items:              4
Number of bin types:          1
Number of bins:               1
Number of defects:            0
Number of rectangular items:  2
Number of circular items:     0
Item-item minimum spacing:    0
Leftover corner:              BottomLeft
Open dim. XY aspect ratio:    -1
Total item area:              60000
Smallest item area:           3600
Largest item area:            26400
Total item profit:            60000
Largest item profit:          26400
Largest item copies:          2
Total bin area:               125000
Largest bin cost:             125000

        Time      # bins    Leftover                         Comment
        ----      ------    --------                         -------
       0.001           1       25000                  TS g 0 d 1 q 1
       0.001           1       45000                  TS g 0 d 0 q 1

Final statistics
----------------
Time (s):  0.00682228

Solution
--------
Number of items:  4 / 4 (100%)
Item area:        60000 / 60000 (100%)
Item profit:      60000 / 60000 (100%)
Number of bins:   1 / 1 (100%)
Bin area:         125000 / 125000 (100%)
Bin cost:         125000
Full waste:       65000
Full waste (%):   52
X min:            0
Y min:            0
X max:            400
Y max:            200
Density X:        0.6
Density Y:        0.6
ODXY area:        80000
Leftover value:   45000

The solution is written to solution.json.

A script is available to visualize the solution:

python3 scripts/visualize_irregular.py solution.json

Input format

Objectives

The objective field in the JSON input accepts the following values:

• knapsack: maximize the profit of packed items in a single bin

• bin-packing: pack all items using as few bins as possible

• bin-packing-with-leftovers: bin packing, then maximize the leftover value in the last bin

• open-dimension-x: minimize the X dimension of a single bin

• open-dimension-y: minimize the Y dimension of a single bin

• open-dimension-xy: minimize the area of a single bin (aspect ratio can be constrained)

• variable-sized-bin-packing: pack all items minimizing total bin cost; bins may be used in any order

• feasibility: determine whether a packing exists

Parameters

The optional parameters object supports:

• item_item_minimum_spacing: minimum distance between any two items (default: 0)

Global spacing constraints apply to all items. Per-bin spacing can be set on individual bin types.

Bin types

Each entry in bin_types describes one bin type. Common fields:

• copies: number of available copies of this bin type (default: 1)

• cost: cost of one bin of this type, used for variable-sized bin packing (default: bin area)

• item_bin_minimum_spacing: minimum distance between items and the bin boundary (default: 0)

Shape specification (one of the following):

• type: "rectangle": axis-aligned rectangle

  • width (mandatory)

  • height (mandatory)

• type: "circle": circle

  • radius (mandatory)

• type: "polygon": arbitrary polygon

  • vertices (mandatory): list of {"x": ..., "y": ...} objects in counter-clockwise order

Defects can be specified with the defects field on a bin type. Each defect is a shape (using the same shape fields as above) placed at a position inside the bin.

Item types

Each entry in item_types describes one item type. Common fields:

• copies: number of copies of this item type (default: 1)

• profit: profit of one item, used for knapsack (default: item area)

Shape specification — same format as bin types:

• type: "rectangle", type: "circle", or type: "polygon" with vertices

Additional polygon fields:

• holes: list of polygonal holes inside the shape. Each hole is a {"type": "polygon", "vertices": [...]} object. Vertices must be in counter-clockwise order.

  All shapes (outer contour and holes) must use counter-clockwise vertex ordering.

Rotation constraints

The allowed_rotations field on an item type controls which orientations are allowed. It is a list of rotation ranges, each with:

• start: start angle in degrees

• end: end angle in degrees

• mirror: if true, the item is first mirrored about the Y axis, then rotated (default: false)

When start == end, only that exact angle is allowed. When start < end, any angle in [start, end] is allowed (continuous rotation range). When end == 360, a full 360° continuous rotation is allowed.

If allowed_rotations is omitted, any rotation is allowed by default.

Examples

Discrete 90° rotations only:

"allowed_rotations": [
  {"start": 0,   "end": 0},
  {"start": 90,  "end": 90},
  {"start": 180, "end": 180},
  {"start": 270, "end": 270}
]

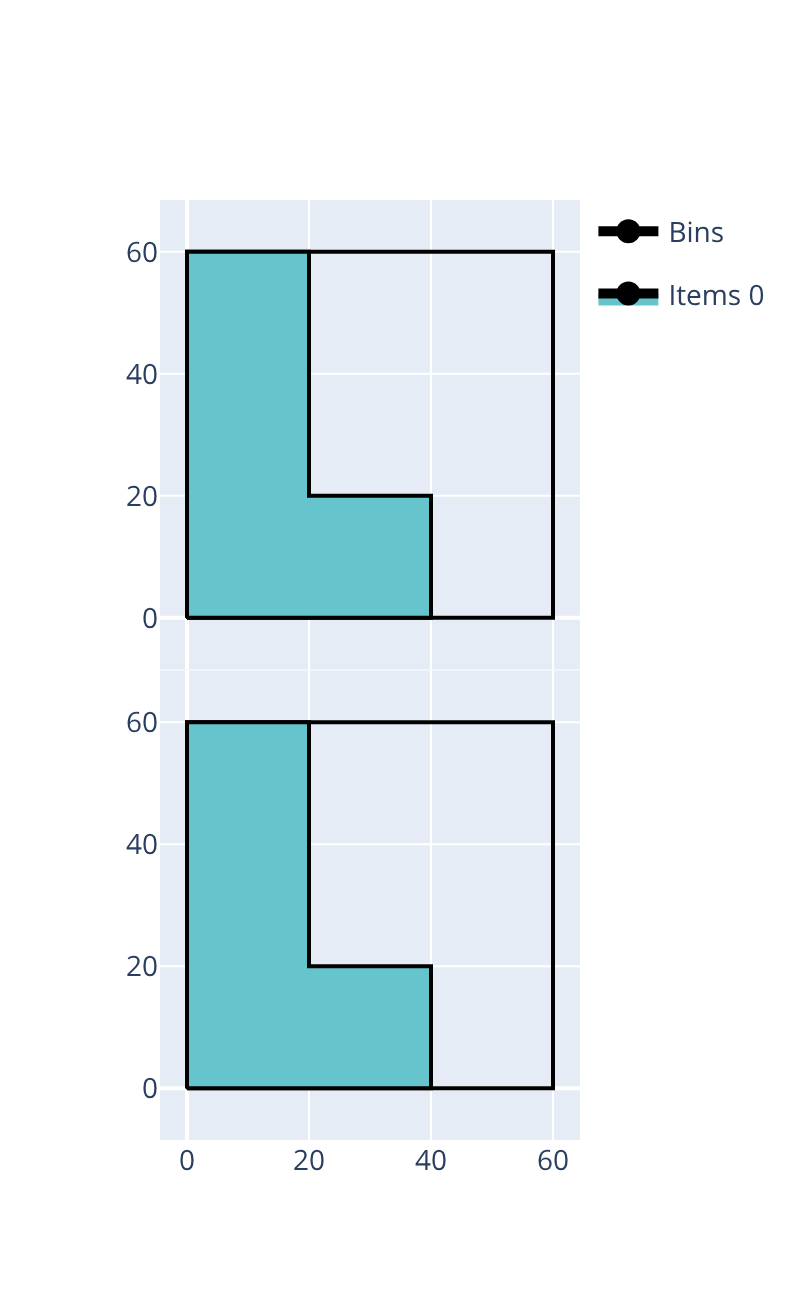

Fixed orientation (no rotation):

"allowed_rotations": [
  {"start": 0, "end": 0}
]

Full 360° continuous rotation:

"allowed_rotations": [
  {"start": 0, "end": 360}
]

Both orientations and their mirrors:

"allowed_rotations": [
  {"start": 0,   "end": 0,   "mirror": false},
  {"start": 0,   "end": 0,   "mirror": true}
]

Polygon with hole

{
  "objective": "open-dimension-x",
  "bin_types": [
    {"type": "rectangle", "width": 500, "height": 300}
  ],
  "item_types": [
    {
      "type": "polygon",
      "vertices": [
        {"x": 0,   "y": 0},
        {"x": 400, "y": 0},
        {"x": 400, "y": 300},
        {"x": 0,   "y": 300}
      ],
      "holes": [
        {
          "type": "polygon",
          "vertices": [
            {"x": 100, "y": 100},
            {"x": 300, "y": 100},
            {"x": 300, "y": 200},
            {"x": 100, "y": 200}
          ]
        }
      ]
    }
  ]
}

Spacing constraints

Item-item and item-bin minimum spacings can be set globally in parameters or per bin type:

{
  "objective": "knapsack",
  "parameters": {
    "item_item_minimum_spacing": 2.0
  },
  "bin_types": [
    {
      "type": "rectangle",
      "width": 1000,
      "height": 700,
      "item_bin_minimum_spacing": 5.0
    }
  ],
  "item_types": [...]
}

Output format

The solution JSON file has a single bins array. Each entry corresponds to one used bin and contains:

• id: bin type index

• copies: number of copies of this bin represented by this entry

• items: list of placed items, each with:

  • id: item type index

  • x, y: position of the item’s origin

  • angle: rotation angle in degrees

  • mirror: whether the item is mirrored

Command-line options

packingsolver_irregular --input instance.json [options]

Mandatory option:

• --input, -i: path to the input JSON file

Instance options (override values in the JSON file):

• --objective, -f: objective (knapsack, bin-packing, bin-packing-with-leftovers, open-dimension-x, open-dimension-y, open-dimension-xy, variable-sized-bin-packing, feasibility)

• --item-item-minimum-spacing: global minimum spacing between items

• --item-bin-minimum-spacing: global minimum spacing between items and bin boundary

• --leftover-corner: reference corner for the leftover value in bin-packing-with-leftovers (bottom-left, top-left, bottom-right, top-right)

• --continuous-rotations: allow continuous rotations for all item types

• --unweighted: set all item profits to 1

• --bin-unweighted: set all bin costs to 1

Output options:

• --certificate, -c: path for the solution JSON file

• --output, -o: path for a JSON file with detailed statistics

• --time-limit, -t: time limit in seconds

• --verbosity-level, -v: verbosity level (0–3)
